When you're trying to figure out how powerful a hydrovac really is, there's one number that cuts through all the marketing noise: air watts. This is the single most important metric for a machine's true digging power. It gives you the full picture by combining airflow (CFM) and water lift (inHg) into one clean number, telling you a lot more about real-world performance than engine horsepower ever could. For professionals in the hydrovac industry, understanding air watts is crucial for optimizing digging efficiency and choosing the right equipment.
Why Air Watts Matter More Than Horsepower in Hydrovacs
For a long time, the hydrovac industry has relied on specs that don't tell the whole story. Take engine horsepower. It sounds impressive, but it only tells you how much power is going into the motor, not how much suction power is coming out of the nozzle where the work gets done.
A big horsepower number on a spec sheet doesn't mean you'll be digging faster. A lot of that energy gets lost as heat or through mechanical friction before it ever becomes useful suction. It's like having a race car with a massive engine but bald tires—all that power just spins the wheels without getting you down the track. A hydrovac's horsepower is just as useless if it can't be turned into productive digging force.
The True Measure of Working Power
This is exactly why air watts are so critical for effective digging purposes. They measure the output power—the actual work the machine is capable of doing. This single number is calculated from the two key ingredients of hydrovac performance:
- Airflow (CFM): Think of this as the volume of air rushing through the hose. It’s what carries all the dirt, rocks, and slurry away from the digging area. High CFM is like a wide, fast-flowing river that can move a huge amount of material.
- Water Lift (inHg): This is the raw suction strength. It’s the brute force that breaks up heavy, compacted materials like wet clay or dense soil and lifts them into the hose. High water lift is like a powerful crane that can hoist a heavy load straight up.
You absolutely need a good balance of both. A machine with high CFM but weak water lift won't be able to break up tough ground. On the other hand, a unit with massive water lift but poor CFM will lift material but move it so slowly that the job takes forever. Air watts give you one reliable number that shows how well these two forces are working together. Our guide to hydrovac excavation equipment dives deeper into how these components are balanced in different types of machinery.
Maximizing Performance at the Nozzle
At the end of the day, what matters is delivering maximum air watts right at the tip of the tool, where it hits the soil. The problem is, a lot of that power gets lost along the way, especially with long hoses and inefficient tools that cause turbulence and clogs. This is where the right gear can make all the difference, providing a solution for more effective digging.
The Hydrovac Attachment Tool is engineered to maintain suction integrity and optimize airflow right at the point of excavation. By preventing clogs and reducing turbulence, it ensures the power generated by your truck's blower is translated into effective digging force, not wasted along the way.
By focusing on air watts, operators in the hydrovac industry can make much smarter choices. It allows for a true apples-to-apples comparison between different hydrovacs and proves why having the right tool at the end of the hose is just as important as the blower on the truck. It ensures every bit of suction you're paying for goes directly into getting the job done faster and more efficiently.
From Misleading Numbers to a True Measure of Power
To really get why air watts are the only number that matters in the hydrovac world, you have to understand the old, misleading metrics. For years, manufacturers threw around specs that sounded impressive but told you almost nothing about how well a machine could actually dig. It created a ton of confusion and made it impossible to compare apples to apples when looking at different equipment.
The scary part? You'll still see some of these old numbers on spec sheets today. Knowing what they are—and what they don't tell you—is the first step to focusing on what really gets the job done.
Why Peak Horsepower and Amps Don't Cut It
Before we had a real standard, two figures were king: Peak Horsepower (PHP) and Amps. They seemed simple enough, but they shared a fatal flaw: they measure the electrical power going in, not the suction power coming out.
- Peak Horsepower (PHP): This was a marketing gimmick, plain and simple. It’s the absolute maximum power a motor could theoretically hit for a split second when it first turns on—not the power it can sustain while you're actually working.
- Amperage: This just tells you how much electricity the motor is pulling. A high amp rating doesn't necessarily mean more power; often, it just means the motor is inefficient and wasting a lot of energy.
It's like judging a weightlifter by how many calories they eat instead of how much they can actually lift. Someone can eat a massive meal (the input) but if they have terrible form, very little of that energy turns into a successful lift (the output). A motor can pull a ton of electricity but waste most of it as heat and noise, leaving you with weak performance at the hose.

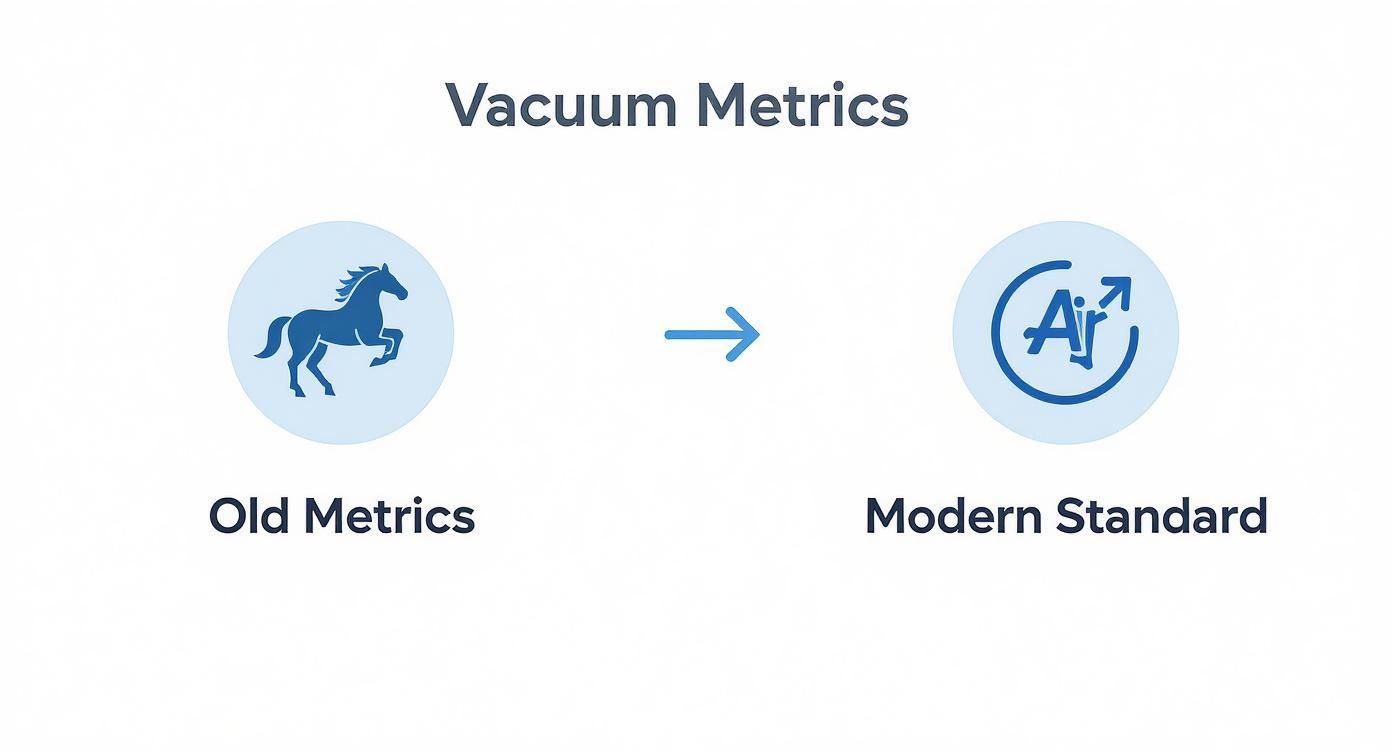

A Better Standard Emerges
Everything changed when the vacuum industry finally got serious about standardization. The idea of Air Watts popped up around the mid-1970s and completely flipped the script. Back then, canister vacs were sold on PHP, and uprights were sold on amps. Air Watts was a game-changer because it measures the actual output power of the vacuum—the work it’s doing—not just the electricity it’s burning.
This was a huge deal. Suddenly, the energy lost to heat and inefficiency—which can be a staggering 50-75% of a motor's total consumption—was no longer part of the performance equation. If you want to dive deeper into this history, the folks at Ristenbatt have some great insights.
The new standard shifted the focus to efficiency. It was no longer about how much power a motor burned, but how well it turned that electricity into the combination of airflow and suction needed to move material.
This is exactly why hydrovac pros today have to look beyond a truck's engine specs. That engine is just the starting point. The real test of an excavation machine is how many Air Watts it can deliver where it counts: at the end of the hose.
That’s where efficiently engineered tools like the Hydrovac Attachment Tool come in. They're designed to protect that precious output. By keeping the airflow smooth and preventing clogs, the attachment makes sure the power you paid for gets applied directly to the soil, turning a number on a spec sheet into real-world digging force. That's what separates a productive machine from one that just makes a lot of noise.
Decoding The Three Pillars Of Suction Performance
When you're talking about hydrovac performance, it's easy to get hung up on a single number. But the reality on a job site is a lot more complex. To really get a feel for what a machine can do, you need to understand three key metrics: CFM, inHg, and the one that ties them all together, Air Watts.
Think of it like building a high-performance engine. You wouldn't just look at horsepower without considering torque. For a hydrovac, that perfect balance comes from the interplay between how much material you can move and how much force you have to lift it.
CFM (Cubic Feet Per Minute): The Speed Of Excavation
First up is CFM, which stands for Cubic Feet per Minute. This is all about airflow. Put simply, CFM tells you the volume of air your vacuum can move through the hose every minute. It’s the speed component of your excavation system.
A good analogy is a wide, fast-moving river. A river with a high flow rate can carry a huge amount of sediment and debris downstream in a hurry. In the same way, a hydrovac with high CFM can pull large volumes of loose soil, sand, and water from the dig site into the tank, making quick work of the job. It's absolutely critical when you're dealing with lighter materials and speed is the name of the game.
But as you know, not every job is loose sand. A fast river can’t move a giant boulder, which brings us to the next piece of the puzzle.
inHg (Inches Of Mercury): The Strength To Lift
The second pillar is inHg, or Inches of Mercury. This is your raw lifting power—the vacuum pressure that creates the sheer strength to pull heavy, dense material up and out of the ground. It’s what we often call water lift or sealed suction.
If CFM is the speed of the river, inHg is the brute force of a heavy-duty crane. While the river is great for moving loose stuff, the crane is what you need to hoist a block of concrete. For a hydrovac operator, high inHg is non-negotiable when you’re up against thick, wet clay or heavily compacted gravel. These materials can stick to your nozzle and create a seal, choking off airflow and requiring immense force to break free. Without enough inHg, the machine just bogs down.
A classic mistake is getting too focused on one metric. A rig with monster CFM but wimpy inHg will fly through soft dirt but choke on clay. On the flip side, massive inHg with poor CFM will lift heavy chunks but take forever to clear the hole. It's all about balance.
This is why the industry has moved toward a more holistic way of measuring performance, leaving old, single-focus metrics behind.
This shift from input specs like engine horsepower to a real-world output metric like Air Watts gives you a much clearer picture of what a machine can actually accomplish.
Air Watts: The Total Work Capacity
This brings us to the metric that really matters: Air Watts. Think of it as the ultimate summary of a vacuum's performance. It's a calculated value that combines both airflow (CFM) and suction strength (inHg) into a single, reliable number that tells you the machine's total work capacity.
A high Air Watt rating is your best indicator of a powerful, well-balanced machine. It tells you that the hydrovac can move a lot of material quickly and has the muscle to lift the heavy stuff when things get tough. It's the most accurate way to predict real-world digging performance across different soil conditions.
To make it crystal clear, here’s a breakdown of how these three metrics play their part in any hydro-excavation job.
Hydrovac Performance Metrics Compared
| Metric | What It Measures | Analogy | Importance in Hydrovac |
|---|---|---|---|
| CFM | Airflow Volume | The speed and width of a river | Determines how quickly you can clear loose soil, sand, and slurry. Essential for high-volume jobs. |
| inHg | Vacuum Pressure | The lifting power of a crane | Determines how effectively you can break up and lift heavy, dense materials like wet clay or compacted soil. |
| Air Watts | Total Work Capacity | A vehicle's combined horsepower and torque | Provides a single, balanced measure of overall digging performance, indicating both speed and strength. |
At the end of the day, even the most powerful hydrovac truck is only as good as the tool at the end of its hose. Inefficient nozzles or attachments can create bottlenecks that waste both CFM and inHg, slashing your effective Air Watts. That's precisely why tools like the Hydrovac Attachment Tool are engineered—to keep airflow and suction at their peak right where the digging happens, making sure every bit of your machine's power gets put to good use.
Calculating and Applying Air Watts on the Job
https://www.youtube.com/embed/reKlFGLdRKs
Knowing the theory behind CFM and inHg is a good start, but what really counts is putting that knowledge to work on a job site. When you learn how to calculate vacuum suction power in air watts yourself, you can look at any hydrovac spec sheet and know its true potential before you even turn the key.
The formula is pretty simple. It takes the two pillars of vacuum performance—airflow and suction—and combines them into one number that tells you everything you need to know. This quick calculation helps you cut through the marketing hype and focus on what actually moves dirt.
The Air Watts Formula in Action
To figure out the Air Watts for any vacuum system, there's a straightforward, industry-standard formula. This is your key to making real, apples-to-apples comparisons between different hydrovac units.
The Formula:Air Watts = 0.117 x CFM x inHg
Let's run the numbers on a real-world example. Say you're looking at a hydrovac truck with these specs from the manufacturer:
- Maximum Airflow: 3,500 CFM
- Maximum Suction: 18 inHg
By plugging those values into the formula, you get a clear picture of the machine's work capacity:
Air Watts = 0.117 x 3,500 x 18Air Watts = 409.5 x 18Air Watts = 7,371
The math shows this truck produces 7,371 Air Watts at its peak. That single number is way more useful than any horsepower rating because it represents the actual power you have to move material from the ground to the tank.
The Inefficiency Gap: Why Engine Watts Don’t Tell the Whole Story
One of the biggest takeaways here is the massive difference between a motor's input power (horsepower) and its output power (Air Watts). A hydrovac engine might boast hundreds of horsepower, but only a small fraction of that energy actually becomes usable suction.
So, where does all that power go? A ton of it is lost to heat, friction, and the general inefficiencies of the blower system. In many vacuum systems, the conversion from electrical watts to Air Watts is surprisingly low, often hovering around just 25-35%. This is exactly why experienced operators are skeptical of specs that only brag about engine size.
Air Watts is the gold standard for measuring real-world vacuum performance. The formula—multiplying airflow by suction and applying a conversion factor—gives us a consistent number, but it also highlights just how much energy is lost in the process.
It's also worth noting that you can't just slap a gauge on a machine to measure Air Watts directly. There's no such thing as a commercial 'air watt gauge'. Because it’s a calculated value, manufacturers might measure it at different points in the system. If you want to dive deeper into the science, Dyson Medic has some great info on the topic.
From Blower to Ground: The Final Hurdle
Even after you’ve calculated a truck's peak Air Watts, there's one more piece to the puzzle: power loss. The 7,371 Air Watts from our example is the power generated right at the blower, not what's happening at the end of your hose.
Long hoses, sharp bends, and inefficient tools create drag and turbulence. All of that resistance bleeds off precious suction power before it even hits the dirt. If you've ever struggled with a clogged hose, you know what I'm talking about. We cover this in more detail in our guide on shop vac hoses and fittings.
This is precisely where the right tool can make or break a job. The Hydrovac Attachment Tool was designed to solve this exact problem. By creating a controlled, optimized suction zone right at the nozzle, it slashes turbulence and stops the clogs that kill your airflow. It ensures every last bit of available Air Watts from your truck is put to work, turning that number on the spec sheet into real digging power.
Turning Rated Power into Real-World Performance
Your hydrovac truck's spec sheet might throw around some big Air Watt numbers, but that's the machine's absolute best-case scenario—think of it as horsepower measured at the engine, not at the wheels. The second air starts moving through hoses and tools, that power starts to fade. The real question is, how much of that impressive rating is actually making it to the ground and getting the job done?
That gap between the blower's potential and the nozzle's performance is where jobs slow down, fuel gets wasted, and frustration sets in. A hydrovac is only as strong as its weakest link, and that weak link is almost always the last few feet of your vacuum system. Figuring out where these power losses happen is the key to unlocking your machine’s true potential.
The Bottlenecks That Steal Your Suction
Picture your vacuum's airflow like water rushing through a fire hose. Anything that gets in the way or disrupts that smooth, powerful flow is going to weaken the stream. In hydro-excavation, a few common culprits are notorious for creating bottlenecks and choking your machine's performance.
These are the factors that constantly chip away at your vacuum suction power air watts before they ever touch the soil:
- Hose Length: It's simple physics. The longer the hose, the more friction the air has to fight against. A surprising amount of energy gets eaten up just pulling air across a long distance, which means both your airflow (CFM) and suction (inHg) are weaker by the time they get to the business end.
- Bends and Kinks: Every sharp turn or kink in the hose acts like a speed bump for air, creating turbulence that throws everything into chaos. This choppy airflow doesn't just slow down debris; it’s a recipe for clogs that can shut down the whole operation.
- Inefficient Nozzles: A basic, open-ended tube is one of the biggest power-wasters you can have. It lets the air get wild and turbulent right at the point of contact, scattering material everywhere instead of creating the tight, focused suction you need to dig effectively.
When you start adding these up, the performance drop can be massive. A hydrovac that boasts over 7,000 Air Watts at the blower might be delivering just a fraction of that power where the digging happens, forcing operators to work slower and burn more fuel to get the same results.
Bridging the Gap from Blower to Ground
This performance gap isn't just a small annoyance; it hits you right in the wallet. Slower digging means more hours on-site, higher fuel bills, and bigger labor costs. The solution is to protect the integrity of your vacuum's suction all the way from the truck to the tip of the tool.
This is where having the right tool for the job makes all the difference. Instead of just accepting power loss as a fact of life, you can use equipment designed specifically to optimize airflow and suction right where it counts.
The Hydrovac Attachment Tool was engineered from the ground up to fight these common performance bottlenecks. It creates a controlled, contained suction zone that eliminates the turbulence and pressure loss you get with standard nozzles. This ensures maximum airflow velocity is maintained right where the tool meets the soil.
Instead of letting air scatter aimlessly, the attachment channels the high-pressure water and the resulting slurry directly into the vacuum stream. This design does more than just reduce mess and improve what you can see—it actively preserves the Air Watts your truck is working so hard to produce. By preventing clogs and keeping air moving at top speed, it lets operators turn their machine's high rating into genuinely faster, more efficient digging. For crews using smaller, portable units, our article on gasoline-powered vacuum options offers more tips on squeezing maximum power out of a compact setup.
Ultimately, the goal is to make your equipment work smarter, not harder. An efficient tool at the end of the hose isn’t just an accessory; it’s the critical component that lets you cash in on the performance you paid for. It ensures the power on the spec sheet becomes the power you actually get on the job, turning rated potential into real-world results.
What to Do When Your Suction Suddenly Sucks
Even the toughest hydrovac rig has its off days. We’ve all been there: you’re on a job, and suddenly the machine just isn't pulling like it should. It's a frustrating moment, but don't panic. More often than not, the problem isn't a catastrophic blower failure but something simple hiding between your truck and the dirt.
Let's walk through how to find and fix the most common culprits, starting with the easy stuff. Before you even think about calling for service, a quick once-over of the basics can save you a ton of time and money. Seriously, most suction issues are solved right here.
Your First-Response Checklist
Think of this as your pre-flight check. Run through these common trouble spots first, as they're the easiest to spot and fix on the spot.
- Look for Blockages: A good old-fashioned clog is the number one reason for lost suction. Eyeball both ends of your hose and run a hand along its length, feeling for any hard spots or lumps. That’s your bottleneck.
- Check Your Filters: The baghouse and cyclone filters are there to save your blower, but when they get caked with mud and dust, they choke off your airflow. A dirty filter will kill your CFM and put a massive strain on the whole system.
- Make Sure You're Sealed Tight: A vacuum is useless without a perfect seal. Check every connection, from the hose couplings to the debris tank lid. Make sure all your gaskets are in good shape and everything is clamped down tight.
If you’ve checked all these and the problem persists, it's time to dig a little deeper into the things that can quietly steal your vacuum suction power air watts.
Digging into Deeper Performance Robbers
Sometimes, the issue isn't one obvious clog but a more subtle problem with your setup. The diameter of your hose, for instance, makes a huge difference. A hose that's too small for your blower's CFM creates a traffic jam, while one that's too big lets the air slow down so much that it can't lift heavy material.
Even the weather can play a part. Working at high altitudes? The thinner air means slightly less atmospheric pressure, which can subtly reduce your machine's lifting power. It’s a small thing, but it adds up.
But the most overlooked power drain? The tool on the very end of your hose. A beat-up, worn-out, or poorly designed nozzle can hamstring even the most powerful vacuum.
Think about it: a standard open-ended wand lets air go wild right at the soil. This turbulence scatters material around instead of sucking it cleanly into the hose. Every bit of that scattered energy is a direct loss of effective Air Watts, which means you’re working slower and burning more fuel for nothing.
This is all about efficiency. The same principle applies to the vacuum cleaner in your house. It might draw 1000-1500 electrical watts from the wall but only convert that into 250-450 Air Watts of actual cleaning power. That's an efficiency of just 25-35%. You can learn more about how this works from these insights on vacuum specifications. Your hydrovac is no different—inefficient tools are just wasting the horsepower your engine is making.
A well-designed tool, on the other hand, can fix these issues instantly. The Hydrovac Attachment Tool is built specifically to get rid of that turbulence by creating a contained, focused suction zone. It keeps air velocity high and pressure stable right where you're digging, making sure the power your truck generates gets turned into fast, efficient excavation. That saves you real time and real money on every single job.
Answering Your Top Questions About Hydrovac Suction
Let's wrap up by tackling a few of the questions we hear all the time from operators in the field. These are the real-world problems and curiosities that come up when you’re trying to get the most out of your rig.
What’s a Good Air Watt Rating for Hydro-Excavation?
When it comes to hydro-excavation, thinking bigger is the right idea. Your shop vac at home might pull 200-300 AW, but a professional hydrovac is a completely different beast. Honestly, there isn't one magic number to look for.
A high-performance machine is all about balance. You need massive airflow—think north of 3,000 CFM—to move a high volume of material. At the same time, you need serious water lift, something above 15 inHg (or 200 inches), to pull heavy, waterlogged debris up the hose. A machine with both of these specs will have a stellar Air Watt rating, but the numbers themselves tell the real story.
Your truck’s blower might be a powerhouse, but what truly matters is the suction you get at the end of the hose. All that power is wasted if your tool creates a bottleneck. An efficient nozzle is what turns your machine's potential into actual digging force.
Can I Increase My Hydrovac's Effective Suction Power?
While you can't magically upgrade your blower on the spot, you can absolutely boost the effective suction power right where the work gets done. It all comes down to minimizing restrictions between the blower and the dirt.
Start with the basics: use the shortest hose possible for the job and make sure your filters are spotless. But the biggest performance gain comes from your nozzle. A simple, open-ended wand is one of the worst offenders for creating turbulence and killing suction. This is where a specialized tool like the Hydrovac Attachment shines; it’s engineered to maintain smooth airflow, so more of your truck’s power makes it to the ground.
Why Does My Suction Power Drop When Digging in Clay?
Ah, the classic clay problem. You're witnessing the eternal struggle between airflow (CFM) and lift (inHg). Heavy, sticky clay can form a perfect seal around the nozzle, which immediately chokes your airflow down to almost nothing.
Once the air stops moving, your vacuum has to rely entirely on raw lifting power (inHg) to break that seal and pull the heavy plug of material into the hose. If your machine has great CFM but only so-so water lift, it will constantly bog down in these conditions. The motor strains, and your productivity grinds to a halt. This is why having a tool that actively breaks up the material and keeps an air channel open is so crucial for tough soils.
Ready to stop wasting your truck's power and start digging more efficiently? The Hydrovac Attachment from Tritan is engineered to maximize your effective suction right at the nozzle, turning rated power into real-world performance. Visit hydrovacattm.com to see how it works and upgrade your toolkit today.
